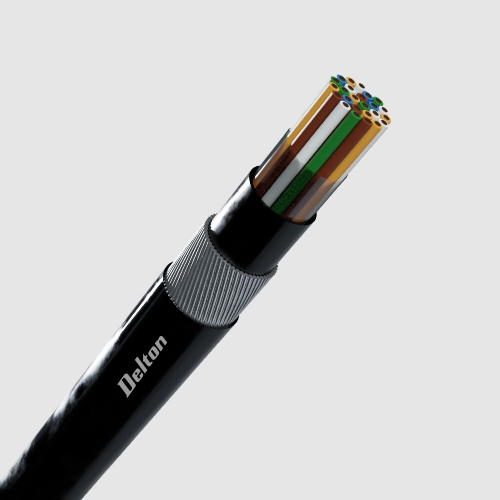

Individual and Overall Shielded Cables
![](https://www.deltoncables.com/wp-content/uploads/2024/01/Individual-and-Overall-Shielded-Cables.jpg)
Stranded/Solid Copper Conductor, PE / PVC / HR-PVC/XLPE / Silicon / FR-XLPE Insulated each Pair / Triad laid up shielded individually with Mylar / Drain Wire / Al Mylar, all Pairs / Triads then laid up together overall shielded with Mylar / Drain Wire / Al Mylar, PE / PVC/FRLS / PVC ST 2 / LSOH Inner sheathed Unarmoured/GI Steel round Wire / Strip / GI Steel Wire braided (Armoured), PVC / FR / FRLS / PVC ST2 / LSOH Outer Sheathed from 2 Pair / Triad to 61 Pair / Triad in sizes 0.5 sq.mm to 2.5 sq.mm

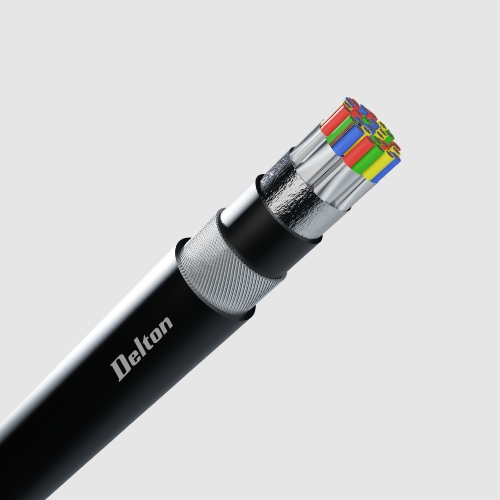

Overall Shielded Cables
![](https://www.deltoncables.com/wp-content/uploads/2024/01/Overall-Shielded-Cables.jpg)
Stranded/Solid Copper Conductor, PE / PVC / HR-PVC / XLPE / Silicon / FR-XLPE Insulated, Core / Pair / Triad / Quad laid up together overall shielded with Mylar / Drain Wire / Al Mylar, PE / PVC / FRLS / PVC ST 2 / LSOH Inner sheathed, Unarmoured / GI Steel round wire/Strip / GI Steel Wire braided (Armoured), PVC / FR / FRLS / PVC ST2 / LSOH Outer Sheathed from 2 to 61 Core and 1 to 61 Pair / Triad / Quad in sizes 0.5 sq.mm to 2.5 sq.mm

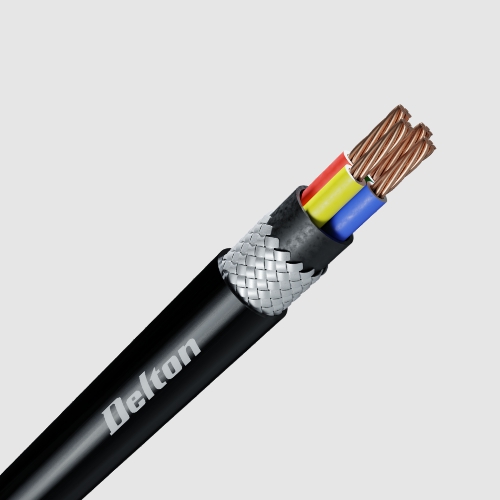

Industrial Braided Cables
![](https://www.deltoncables.com/wp-content/uploads/2024/01/Industrial-Braided-Cables.jpg)
Annealed Bare Copper Flexible Conductor Class 5, PVC Insulated, Tinned Cu Braided, PVC Sheathed Flexible Unarmoured / GI Steel Wire Armoured, PVC outer sheathed Cables, 1100 Volts from 2 to 61 Core in sizes 0.5 to 2.5 sq.mm and from 3 & 4 Core in sizes 4 to 16 sq.mm
